Gdz80-2.2 2.2kw Vfd Cnc Spindle Motor Er16 Er11 Er20 Water Cooled 80mm

Brand Name : JSS

Model Number : GDZ80-2.2

Certification : CE

Place of Origin : CHINA

MOQ : 1PCS

Price : USD 110-125 pcs

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000 pcs Per Month

Delivery Time : 3-5 working days

Packaging Details : Carton or wooden box

Speed : 24000 rpm

Power : 2.2KW

Diamater : 80mm

Voltage : 220V/380V

Current : 8A

Joint of nose : Er11/Er16

Cooling type : Water cooling

Weight : 5Kg

Bearing : 2*7005C P4 DT 2*7002C P4

Application : Milling,Turning,Engraving,Grinding

Drive : Inverter,VFD

Color : silvery

Contact Now

Water cooled spindle motor electrical Specification

TYPE	speed(rpm)	motor					Shaft end link	Lubrication	Cooling	Weight(kg)
TYPE	speed(rpm)	power(kw)	voltage(V)	current(A)	frequency(HZ)	diameter(mm)	Shaft end link	Lubrication	Cooling	Weight(kg)
GDZ48-300	60000	0.3	75	4.5	1000	Φ48	ER8	grease	water cooling
GDZ62-1.2	24000	1.2	178	5	400	Φ62	ER11	grease	water cooling
GDZ62-1.2	36000	1.2	220	4.5	600	Φ62	ER11	grease	water cooling	4.4
GDZ62-1.2	60000	1.2	220	4.5	1000	Φ62	ER11	grease	water cooling	4.4
GDZ65-800	24000	0.8	110 150 220	3.9 6.0 5.0	400	Φ65	ER11	grease	water cooling	2.6
GDZ65-1.5	24000	1.5	220	5.5	400	Φ65	ER11	grease	water cooling	3.6
GDZ80-1.5,ER16	24000	1.5	220	5	400	Φ80	ER16	grease	water cooling	5
GDZ80-2.2B,ER20	24000	2.2	220 380	8 5	400	Φ80	ER20	grease	water cooling	5
GDZ85-1.5	24000	1.5	380	5	400	Φ85	ER20	grease	water cooling	13
GDZ85-2.2	24000	2.2	380	7.5	400	Φ85	ER20	grease	water cooling	13
GDZ100-3	24000	3	220 380	10 5.8	400	Φ100	ER20	grease	water cooling	9
GDZ100-4	24000	4	220 380	13.8 8	400	Φ100	ER20	grease	water cooling	11.6
GDZ125-4.5	24000	4.5	380	8	400	Φ125	ER25	grease	water cooling	22
GDZ125-5.5	24000	5.5	380	9	400	Φ125	ER25	grease	water cooling	22

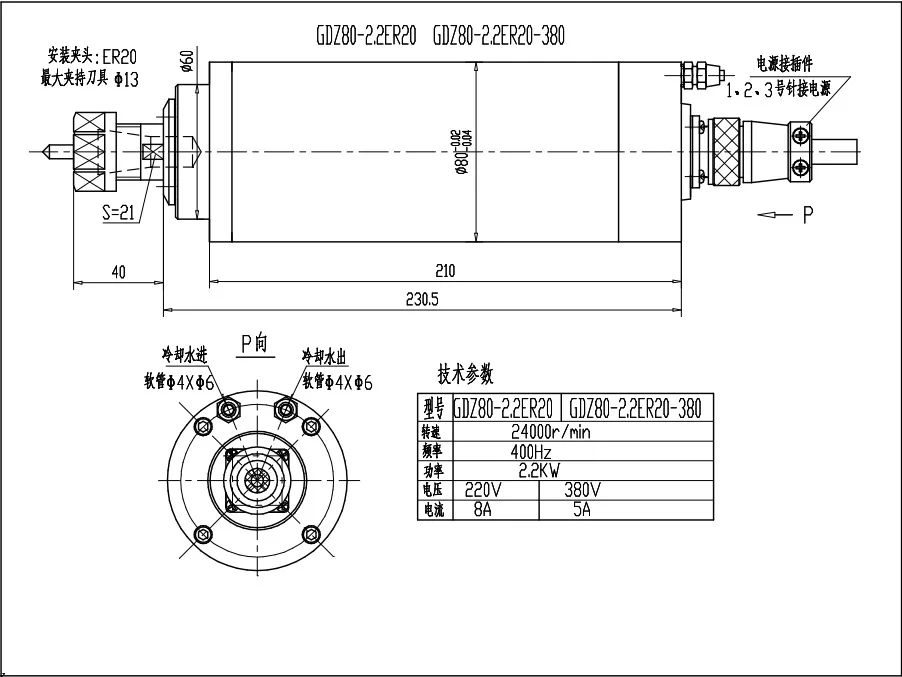

Different views of Spindle

Gdz80-2.2 2.2kw Vfd Cnc Spindle Motor Er16 Er11 Er20 Water Cooled 80mm

Packaging & Shipping

We have standard package for our products

Gdz80-2.2 2.2kw Vfd Cnc Spindle Motor Er16 Er11 Er20 Water Cooled 80mm

Our Services

1. Sample order lead time is in 5 days. Mass quantity order lead time is 7-10 days.

2. We can accept payment via paypal, Western Union, Money Gram, T/T, L/C

3. We can provide you professional technical support. And our products quality gurantee is 18 months.

4. We accept products customize.

Certification

Gdz80-2.2 2.2kw Vfd Cnc Spindle Motor Er16 Er11 Er20 Water Cooled 80mm

FAQ

1.Q:Can I get some samples first?

A:Sure, we are honored to offer you samples for your check.

2.Q:Do you have the products in stock?

A:Our products are manufactured according to your order except the normal products.

3.Q:What's the delivery time?

A:It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.

4.Q: How does your factory do regarding quality control?

A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.

5.Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
